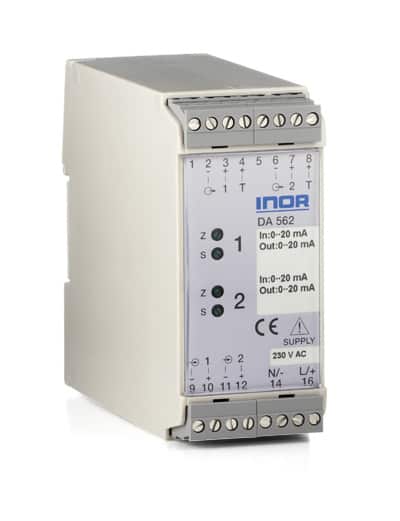

DA562 (Discontinued)

Dual Channel Isolation Transmitter for mA/V Signals

DA562 is specially designed for signal isolation and load amplification in the process industry. Two independent and galvanically isolated channels allow for high-density mounting.
DA562 maintains a high isolation level (1,5 kV) between input, output and the two channels. Current and voltage can be chosen independently as input and output signals.

  • Two fully independent isolated channels
  • Current and voltage input
  • Current and voltage output
  • Output test terminals
  • 1 500 V isolation level
  • Short response time
  • High noise immunity
  • Available for AC or DC power supply
  • DIN-rail mounting
  • Plug-in screw terminals
Category: .

Technical Specification

No. of channelsTwo, independent selection of input/output signal
Input Voltage 0(0,2)-1 V, 0(1)-5 V, 0(2)-10 V
Input impedance1 MΩ
Input Current0(4)-20 mA (standard setting)
Input impedance11,9 Ω
Maximum input level200 % of measurement span
Output Voltage0(0,2)-1 V, 0(1)-5 V, 0(2)-10 V, short circuit protected
Minimum load500 kΩ (error effect
Voltage limitationCa 56 V
Output Current0(4)-20 mA, open or short circuit protected
(standard setting)
Maximum load600 Ω
Current limitationAppr. 23 mA
Test outputmA instrument, Ri ≤ 10 Ω
Operation temperature-20 to +60 °C / -4 to +140 °F
Galvanic isolation
AC & DC version
Input to output 1 500 VAC, 1 min
Input/output to power supply 2 200 VAC, 1 min
Between channels 1 500 VAC, 1 min
Power supply AC versions230 VAC, -15..+10 %, 45..75 Hz,
115 VAC, -15..+10 %, 45..75 Hz
Power supply DC version19 to 60 VDC
Typical accuracy±0.15 % of span
ConnectionsPlug-in terminals Stranded, ≤ 2.5 mm2, AWG 14
MountingRail acc. to DIN EN 50022, 35 mm
