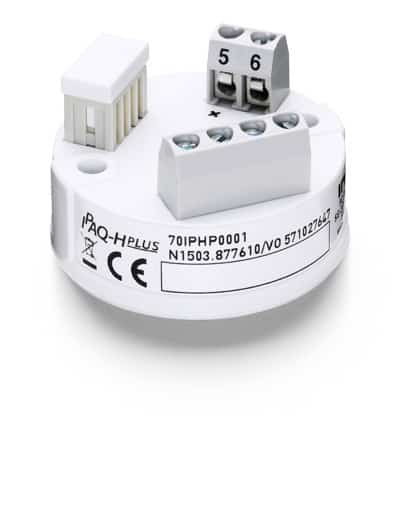

IPAQ-Hplus (Discontinued)

High-precision Universal Programmable 2-wire Transmitter

IPAQ-HPLUS offers outstanding accuracy, stability and high isolation combined with short response time and extended functionality.
It is a universal 2-wire transmitter for high-demand temperature and process measurement applications.
Error corrections and sensor diagnostics improve the measurement accuracy and safety.

  • Fully universal, linearized and highly isolated
  • Accepts RTD, T/C, mV and Ω
  • Extra high accuracy and stability
  • Sensor error and system (sensor/transmitter) error correction for
    highest total accuracy
  • 40 point linearization – any sensor can be matched
  • Configuration without external power
  • High speed update (300 ms)
  • Selectable output limits
  • Low sensor isolation detection
  • Full access to all features while in operation
  • NAMUR compliant
  • Consistent sensor break function
  • Simplified loop check-up with calibration output
  • IPRO, easy-to-use Windows configuration software
Category: .

Technical Specification

TypeHead-mounted
InputRTD; Thermocouple; Universal
Input RTDPt100, Pt1000, Ni100, Ni120, Ni1000, Cu10
Input ThermocoupleType B, C, E, J, K, L, N, R, S, T, U
Type Of TransmitterDigital
Output4-20 mA
IsolationIsolated
Measuring channels1 channel
Input connection3-, 4-wire connection
Power supply6.5 to 36 VDC
Typical accuracy0.05% of span

Documents

Accessories

  • PC Configuration Kit
  • DIN-rail adapter
