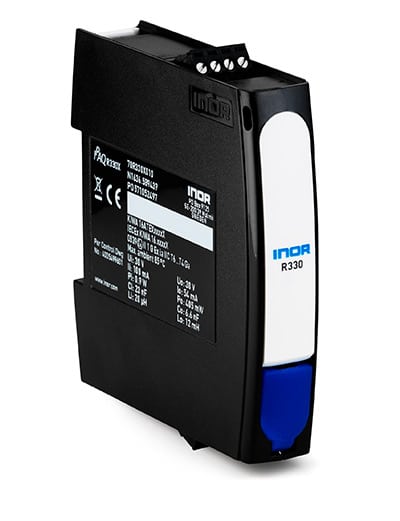

IPAQ R330

Universal 2-wire transmitter with wireless communication

IPAQ R330 is a modern temperature transmitter developed to meet the highest requirements on flexibility, accuracy and reliability. A universal transmitter compatible with RTD, thermocouples, voltage and potentiometer sensors to offer high flexibility and reduce the number of installed product variants. IPAQ R330 is available with ATEX, IECEx and cFMus certifications, making it a safe choice for a wide range of applications.

IPAQ R330 supports wireless communication via NFC® (Near- field communication) and Bluetooth® which makes it possible to configure and monitor the transmitter through a smartphone or a tablet.

Request a quote
Categories: , , , , , , , , , , , , , , , , , , , , , .

Overview

High reliability and accuracy over time

IPAQ 330 is a highly reliable and robust temperature transmitter. External influences such as ambient temperature, vibrations up to 10 g, moisture and EMC interference have minimal influence on the measurement result.

Minimal drift of ±0.1°C or ±0.1% of span over 5 years reduces calibration requirements.

IPAQ 330 - Accuracy over time

Smart features to facilitate your daily work

Packed with our most advanced technology, IPAQ 330 gives you better control over your process. Smart features such as password protection, simulated output, data logging, runtime counter and customized linearization, facilitates your daily work.

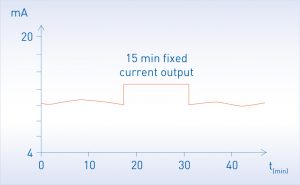

IPAQ 330 - Simulated output

Wireless configuration och monitoring

Configure your IPAQ 330 wirelessly via NFC® by using the new app INOR Connect. The fast communication between the transmitter and the smartphone makes it possible to copy and paste a configuration to as many transmitters as you like and it only takes seconds.

Add the ICON-BT modem and you can configure and monitor your IPAQ 330 also via Bluetooth. Thanks to the extended range that Bluetooth offers you can monitor the transmitter remotely.

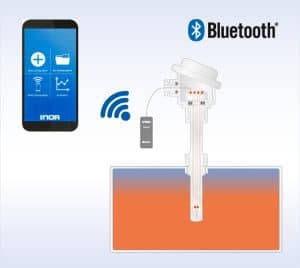

IPAQ 330 - Wireless monitoring via Bluetooth

Technical Specification

TypeRail-mounted
InputRTD, TC, mV, ohm
Input RTDPt100, Pt1000, Ni100, Ni120, Ni1000, Cu10
Input thermocoupleType B, C, D, E, J, K, N, R, S, T
Type of transmitterDigital
Output4-20 mA
Galvanic isolation1500 VAC
Measuring channels1 channel
Sensor connection2-, 3-, 4-wire connection
Power supplyIPAQ-R330: 8 to 36 VDC
IPAQ-R330X: 8 to 30 VDC
ApprovalsATEX, IECEx, FM
Typical accuracy0,08% of span
Accuracy over timeMax. drift ±0,02% of span/year
VibrationIEC 60068-2-6, 5 g
Runtime counterHour counter for elapsed operational time
Simulated outputFixed current ouput during a maximum time
of 15 min
ConfigurationConSoft or INOR Connect
Wireless communicationNFC® and Bluetooth® *

* Bluetooth® communication is only supported together with ICON-BT

Documents

  • IPAQ R330

FAQ

Is it possible to replace my IPAQ-L directly with an IPAQ R330?

Yes, please follow the instructions to ensure that you connect the transmitter correctly.

What are the advantages of IPAQ R330 compared to IPAQ-L?

The IPAQ R330 is based on the latest technology, which means that it offers new features such as:

  • Robust design that resists shock and vibration up to 5 g
  • Fixed output current for 15 min for commissioning and troubleshooting
  • Wireless communication via NFC® and Bluetooth®
  • Potentiometer input
  • Higher accuracy and stability over time
  • Password protection
  • Runtime Counter

Can I configure and monitor the IPAQ R330 wirelessly?

Yes, IPAQ R330 offers wireless communication via NFC® and Bluetooth® through the app INOR Connect.

How do I know which version of the IPAQ R330 I have?

By looking at the article number of the product you can see which version it is. The article number of the first version ends with 0 and the second version ends with 2. The difference between version 1 and 2 is that version 2 supports wireless communication via NFC® and Bluetooth®.
